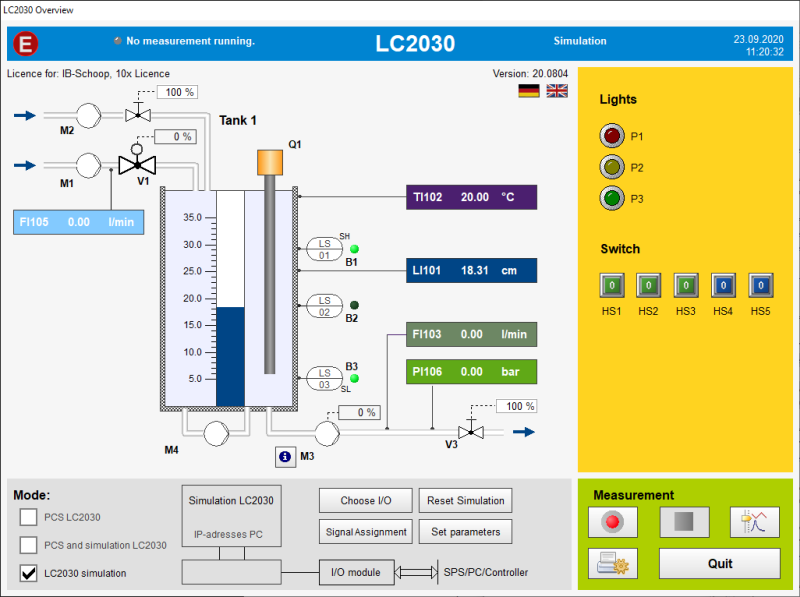

With the LC2030-Training, tasks from the field of open-loop and closed-loop control technology can be edited. The LC2030-Training allows you to work with the real workstation LC2030 or with a simulated system.

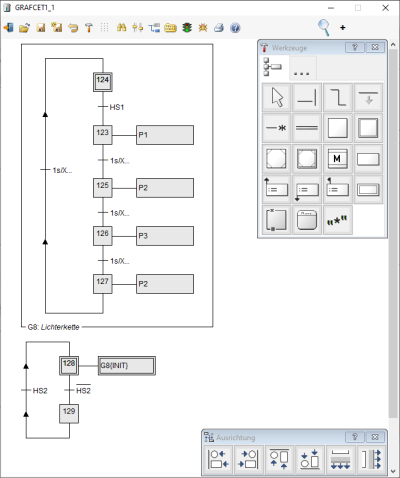

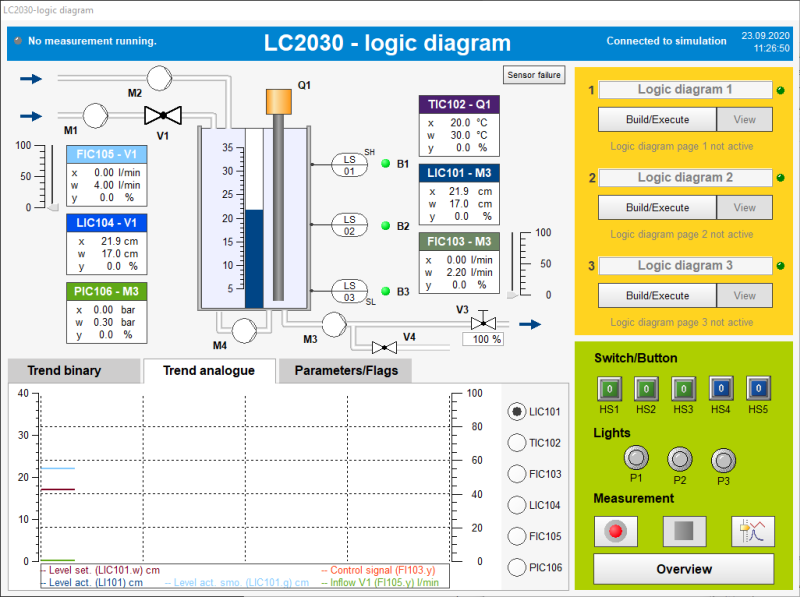

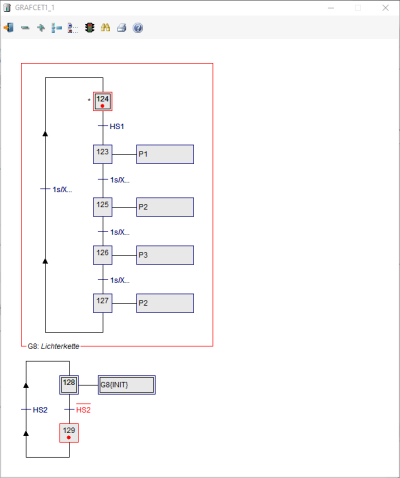

Open-loop and sequence controls can be implemented using GRAFCET- or Logic-plans for different exercises. The plans can be tested online with the real or the simulated training station.
All signals are plotted in a time based diagram. All plots are stored and may be evaluated while measuring or afterwards.
Download Demoversion
Free demo version in the download center
Control Systems
Liquid level Flow rate
Temperature Pressure
P controller PID controller
I controller PI controller
Two-position controller
Teaching material with tasks for open- and closed-loop control technology as well as an introduction to GRAFCET are included.


Language switch german and english

Optional Equipement:

Workstation LC2030: Workstation for practical courses in open and closed loop control [more].

I/O Board 4488: For connection between workstation and LC2030 Training.

More Information:

Info-Flyer (.pdf)

Manual (.pdf)

Price List Educational Software

Please contact us for more information [Contact]
